Condition: New
Place of Origin:
China (Mainland)
Brand Name:Solid
stud welding machine
Model Number: DA-1000
IGBT welding machine
Arc Current:
200A-1000A
Pulse Frequency:
50/60Hz
Pilot Arc Current:
160A
Rated Duty Cycle:
15%
Dimensions: 880mmx368mmx560mm
Usage: Welding
M4-M14 Studs for shipbuilding, power plant, kiln, boiler etc.
Voltage: AC
3~280V-440V
Power(W): 35KW
Certification: CE
Warranty: One
years from the shipment date
After-sales
Service Provided: Engineers available to service machinery overseas Weight:
80KG
Welding Range:
M4mm-M14mm
Welding Time:
0.1S-3.0S
Welding Speed: M14
10PCS/minute
Power Switch: 63A
Protect Grade:
Ip23
Cooling Way: F
Welding mode:
drawn arc stud welding machine
Technology: IGBT
inverter drawn arc
Metal welding
machine:DA-1000 IGBT Solid stud welding machine
Condition: New

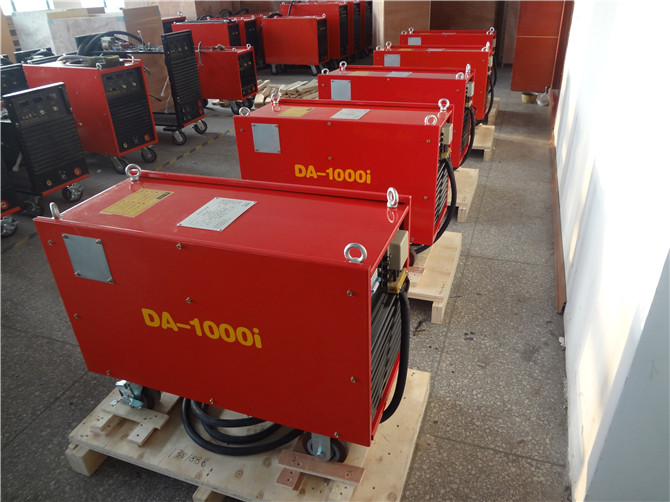

DA-1000i Solid stud welding machine
1. Technical Parameters
|
Item
|
DA-800i
|
DA-1000i
|
DA-1200i
|
|
welding range
|
Φ4mm—Φ12mm
|
Φ4mm—Φ14mm
|
Φ4mm—Φ16mm
|
|
welding current
|
160A—800A
|
200A—1000A
|
200A—1200A
|
|
welding time
|
0.1S—3S
|
0.1S—3S
|
0.1S—3S
|
|
welding speed
|
Φ12 10pcs / minute
|
Φ14 10pcs / minute
|
Φ16 10pcs / minute
|
|
input power
|
AC 3˜280V—440V
|
AC 3˜280V—400V
|
AC 3˜280V—440V
|
|
rated input power
|
30KW
|
35KW
|
40KW
|
|
power switch
|
47A
|
63A
|
63A
|
|
protect grade
|
Ip23
|
Ip23
|
Ip23
|
|
cooling way
|
F
|
F
|
F
|
|
dimension(L/W/H)
|
880x368x560mm
|
880x368x560mm
|
880x368x560mm
|
|
weight
|
68KG
|
80KG
|
90KG
|
|
* All above parameters are subject to technical modifications.
* Upon your requests, the welding machine for special use shall be designed and welcome to contact us.
|
2. Welding machines features
(1) IGBT Inverter technology.
(2) Low price, less weight, power efficient, safe and reliable.
(3) Easy control and digital display of welding voltage, current and time.
(4) Special torch with extending cables, large lfiting force, low heat and durable.
(5) Inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.
(6) Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower), the welding strength is much higher than ordinary welding machine. This feature applies to: electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.
3. Semi automatic welding machine Standard accessories and their connecting illustration
|
Standard Accessories of DA-1000i
|
|
No.
|
Accessories
|
Spec.
|
Qty.
|
|
(1)
|
torch with 5m cable
|
DH-12
|
1pc
|
|
(2)
|
torch lengthening cable
|
50mm²
|
15m
|
|
(3)
|
earth cable
|
50mm²
|
10m
|
|
(4)
|
chucks
|
Φ4,Φ6,Φ8,Φ10,Φ12
|
10pcs
|
|
(5)
|
ferrule holder
|
Φ4,Φ6,Φ8,Φ10,Φ12
|
5pcs
|
|
(6)
|
earth clamp
|
N/A
|
1pc
|
4. Semi automatic welding machine Applications
(1) Mother materials and welding effects
Carbon steel, low alloy steel, copper etc. materials with arc weldability. Welding in the workpiece surface of oxide layer, oil slick, priming paint or electroplate. After welding, no deformation, no convex, downward position welding, vertical position welding, overhead position welding, all position welding.
(2) Applicable welding projetcs
Kiln, boiler, shipbuilding, power plant, chemical engineering, mechanical equipment, various pipeline, vessel, bucket, vehicle manufacturing etc. thickness ≥ 2mm, welding M4mm—M22mm pins, studs, pin bolts, special-shaped pins, corrugated pins, anchoring parts etc. similar studs and bolts.
5. Quality Assurance and Quality Control System, Production Workflow
As professional manufacturer of stud welding machines, welding torches and accessories, we possess special quality assurance and quality control system, and advanced production lines and complete workflows including high-quality raw materials purchasing, assembling, testing, packaging and delivery etc.

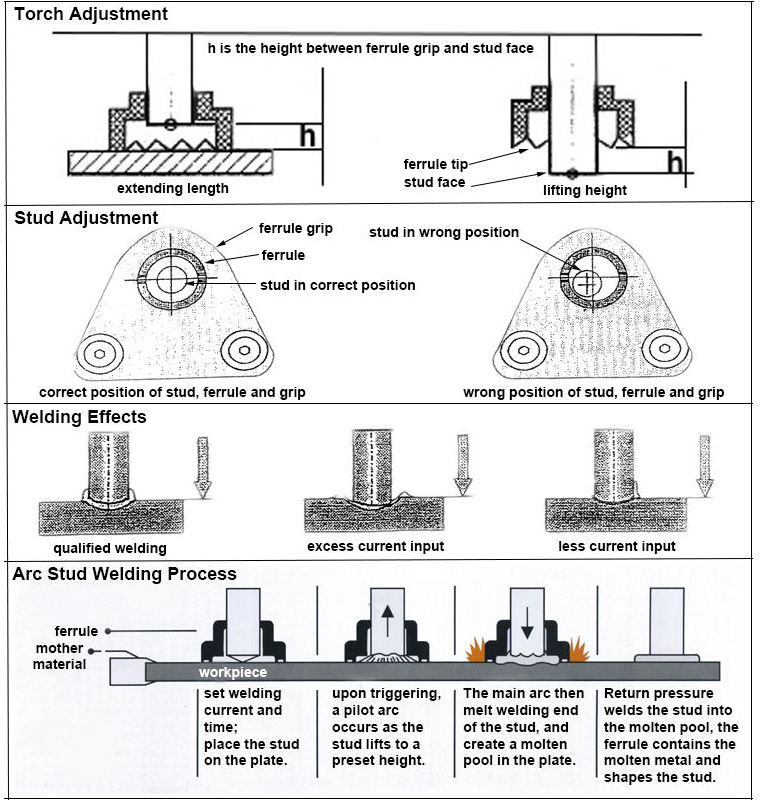

6. Semi automatic welding machine Operation
(1) Locate the welder in a reliable, clear and safe site;
(2) Connect the earth cable, lengthening cable, torch, chuck, grip, ferrule and stud;
(3) Open power suply to observe digital welding voltage, current and time meters;
(4) Adjust welding voltage, time and current, lifting height, extending length, chuck, grip, ferrule and stud
(5) Trial welding to test whether all the parameters are correctly adjusted or not. If not, reset your welding parameters.
(6) Begin to weld studs in your sites
Packaging Details:
1. Outer package: sturdy plywood cases accessible to pallets
2. Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed by corrugated cartons.
3. Packaging Size
(1) Plywood cases: 1020mm*640mm*1100mm;
(2) DA-1000i: 880mm*368mm*560mm
(3) Accessories: 550mm*550mm*280mm
4. Container loading: 38 sets for 20GP, and 80 sets for 40GP
5. Delivery Details: 5 days for stock, 20 days for new
|
Specifications
Solid stud welding
machine
1.Low price, CE
2.Quick delivery
3.Fast welding,strong
strength,low heat,less pollution
|
