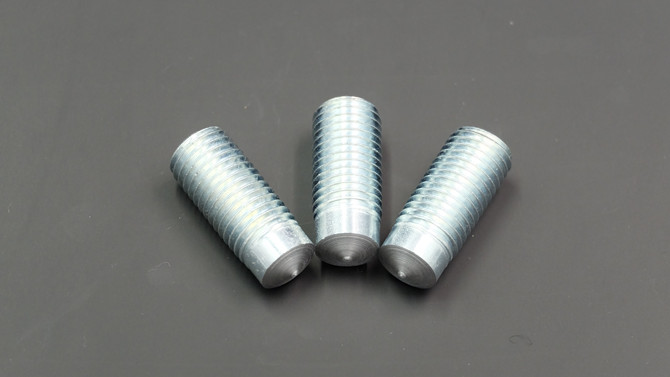

PD-Partially Thread Stud


       Place of Origin:China (Mainland)


    Brand Name: SOLID

    Standard: ISO 13918, AWS D1.1

    Model Number: PD-Partially Thread Stud M6-M24

    Length:15mm-160mm

    Surface Treatment:

      -Steel:Zinc(White,Blue)/Copper plated

      -Stainless steel:Passivated

    Ferrule type: PF type

    Technology: Drawn arc stud welding with ceramic ferrule

    Materials: Low Carbon Steel(MS) or Stainless Steel A2-50

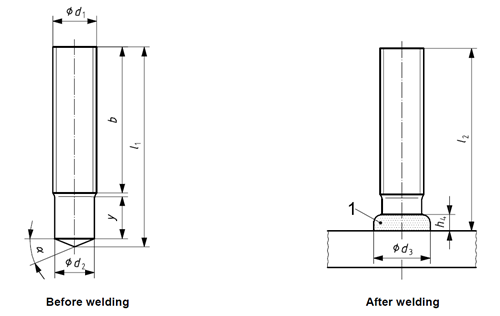

Specifications





Φd1

Φd2

Φd3

h4

Ferrule

M6

5.35

8.5

3.5

PF6

M8

7.19

10

3.5

PF8

M10

9.03

12.5

4

PF10

M12

10.86

15.5

4.5

PF12

M16

14.7

19.5

6

PF16

M20

18.38

24.5

7

PF20

M24

22.05

30

10

PF24



Packaging & Delivery

Packaging&Details:carton package with inner polybag,1000 or 2000

pcs in one ploybag or at your requirement.

Delivery Detail:5 days for stock,10-15 days for new.
